Elegant Series | Synced Restroom Occupancy System
Our Elegant Series blends seamlessly into upscale environments. It’s a 100% accurate hardwired system designed for absolute, zero-fault reliability. Experience occupancy visibility from anywhere with this ADA compliant, easy to install commercial upgrade.
No Obligation. Systems Starting at $389
-
LED light that is synced with a Schlage B751 smart deadbolt lock. Our elegant series is perfect for upscale environments. 100% accuracy status that can be seen from up to 300ft away. No more guessing if the restroom is vacant or occupied. Know before you go.
-
Fishes vertically through hollow frames straight into standard drop ceilings. Minimum wall puncture for cables to feed through.
-
Engineered standard around the trusted, Grade 2 Schlage B571 deadbolt footprint. One of the most trusted brands in commercial deadbolts.
-
Heavy-duty mechanical dust box built to survive high-impact commercial use.
-
Plug-and-play low-voltage loop requires absolutely no ongoing maintenance or battery tracking. With consistent use, the LED will last you 10+ years.
How it Works

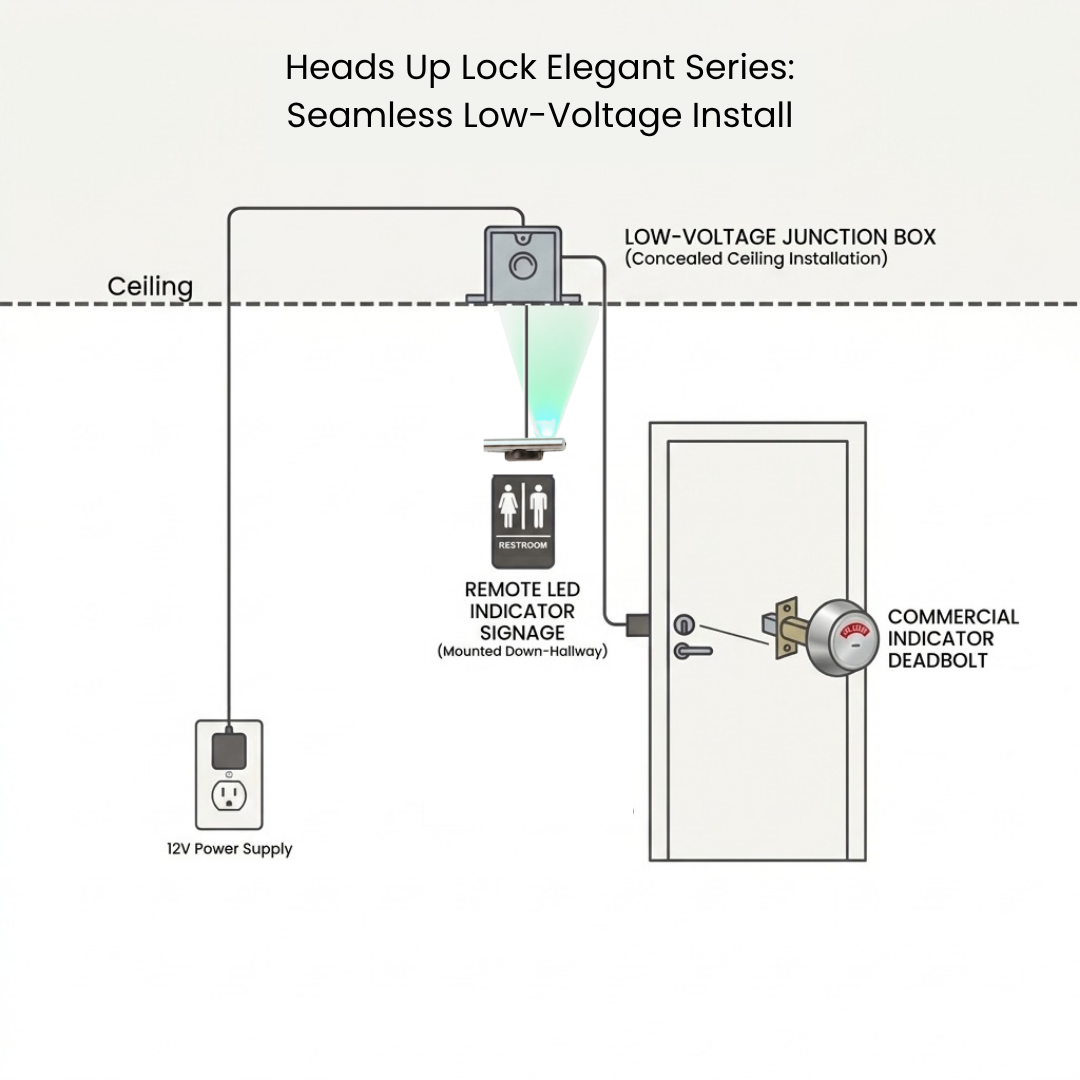

Fail-Safe Synced Technology: An enterprise-grade LED light connects directly to a heavy-duty commercial deadbolt via a hidden 50ft cable.
100% Status Accuracy: Locking the physical deadbolt instantly switches the indicator light from green to red with absolute precision.
Zero-Fault Proximity Switches: Advanced hardware engineering completely eliminates the false triggers and reading errors common with standard infrared or motion sensors.
Maintenance-Free Engineering: The entire setup functions as a true plug-and-play system, requiring zero upkeep or battery replacements after installation.
10+ Year Operational Lifespan: Built specifically for high-traffic environments, the heavy-duty components ensure dependable facility performance for over a decade.
Straight Forward Installation
The two skills needed to install Heads Up Lock are easy to learn, but we recommend a qualified handyman for optimal installation.
Each kit comes with a 50ft power cord, a 50ft dust-box switch cable, a smart deadbolt lock (Schlage B571), an electrical box, and the light mount. Screws, nuts, bolts, and washers included.
You Might Also Like
Get a Formal Quote
A detailed quote will be sent to your inbox within 24hrs. If we have questions about your request, we’ll give you a brief call to discuss your options.
FAQ
System Mechanics & Functionality
-
No. It does not require hardwiring. It uses a low voltage power connector that simply plugs into your existing wall outlet.
-
Yes. The exterior side of the lock includes a built-in emergency release slot that allows authorized staff to quickly unlock the door from the outside using a key.
-
With consistent use, the LED indicator should last you 10+ years.
Pricing, Ordering & Compliance
-
The cost starts at $389 per unit, but will vary depending on which model you want and what configuration you choose.
-
We offer gender neutral, gender specific and handicap restroom signs. If you have a custom sign you’d like, please let us know. We will order the sign for you and mount it to the light. The price of that sign will be included in the quote.
-
Yes. The lock features a standard commercial-grade lever mechanism that requires no tight grasping, pinching, or twisting of the wrist to operate, fully satisfying ADA accessibility standards.
Installation & Compatibility
-
The lock is engineered with adjustable latch spacing to fit standard door thicknesses for commercial entries, and can be retrofitted onto most standard single stall commercial restrooms.
-
The standard model comes with 50 ft of cable. This is usually sufficient in most cases. But if more length is needed, we provide 50 ft extensions.
-
Yes. The unit is easily retrofitted into any building with single-stall restrooms. As long as a deadbolt can be installed into the door, the system will work.
Warranty, Returns & Support
-
Yes. All Heads Up Lock products are backed by a 2-year limited warranty. We stand behind the quality and reliability of our products and will repair or replace eligible products that experience defects in materials or workmanship during the warranty period.
Warranties are non-transferable and are only valid for products purchased directly from the official Heads Up Lock manufacturer or through an authorized Heads Up Lock distribution partner.
For warranty questions or to submit a claim, please contact our team at info@headsuplock.com.
-
We want you to be completely satisfied with your Heads Up Lock hardware. Our return policy is split into two categories depending on the situation:
Defective, Damaged, or Wrong Items: If your item arrives damaged, faulty, or incorrect, please notify us within 20 days of delivery. We will provide a 100% free return or replacement and will send you a prepaid shipping label to cover all return costs.
Changed Mind or Wrong Size (Non-Defective): If you ordered the wrong size or changed your mind, you can return the item within 30 days of delivery.
Condition: Items must be unused and placed in the original packaging, and in resalable condition.
Fees: The customer is responsible for all return shipping costs.
How do I start a return?
To initiate any return or replacement, please email our support team at info@headsuplock.com with your order number and photos of the item (if damaged or defective). We will guide you through the next steps!
Technical Specifications
-
Input Voltage: 100–240V AC, 50/60 Hz (via included step-down transformer)
Operating Voltage: Low-Voltage Class 2 system DC operational threshold)
Circuit Integration: Plugs directly into standard commercial outlets
System Fail-Safe: Automatic logic reset immediately following facility power interruptions or generator switchovers
-
Hardware (Division 8): Heavy-duty, commercial-grade lock assembly meeting ANSI/BHMA standards. ADA-compliant thumb-turn and exterior indicator design (Schlage B571). Fits standard 1-3/4” commercial doors with a standard 2-1/8” bore.
Trigger Mechanism: Closed-loop, non-electronic magnetic deadbolt with strike plate switch assembly (No motion sensors, software apps, or network vulnerabilities)
Field Wiring: Includes 50-foot premium 2-conductor low-voltage signaling wire (Extendable up to 50 feet without signal degradation)
Mounting Versatility: Rated for dual-surface deployment—structural suspended ceiling grid attachment
-
Plenum Rated Options: Wiring complies with strict local ceiling air-handling safety codes.
Fire-Rated Doors: Deadbolt lock and strike plate are compatible with standard commercial door preps; check with your local AHJ (Authority Having Jurisdiction) when deploying on rated fire doors.
