Product Overview
Electrical Power Requirements
Input Voltage: 100–240V AC, 50/60 Hz (via included step-down transformer)
Operating Voltage: Low-Voltage Class 2 system DC operational threshold)
Circuit Integration: Plugs directly into standard commercial outlets
System Fail-Safe: Automatic logic reset immediately following facility power interruptions or generator switchovers
Hardware (Division 8): Heavy-duty, commercial-grade lock assembly meeting ANSI/BHMA standards. ADA-compliant thumb-turn and exterior indicator design (Schlage B571). Fits standard 1-3/4” commercial doors with a standard 2-1/8” bore.
Trigger Mechanism: Closed-loop, non-electronic magnetic deadbolt with strike plate switch assembly (No motion sensors, software apps, or network vulnerabilities)

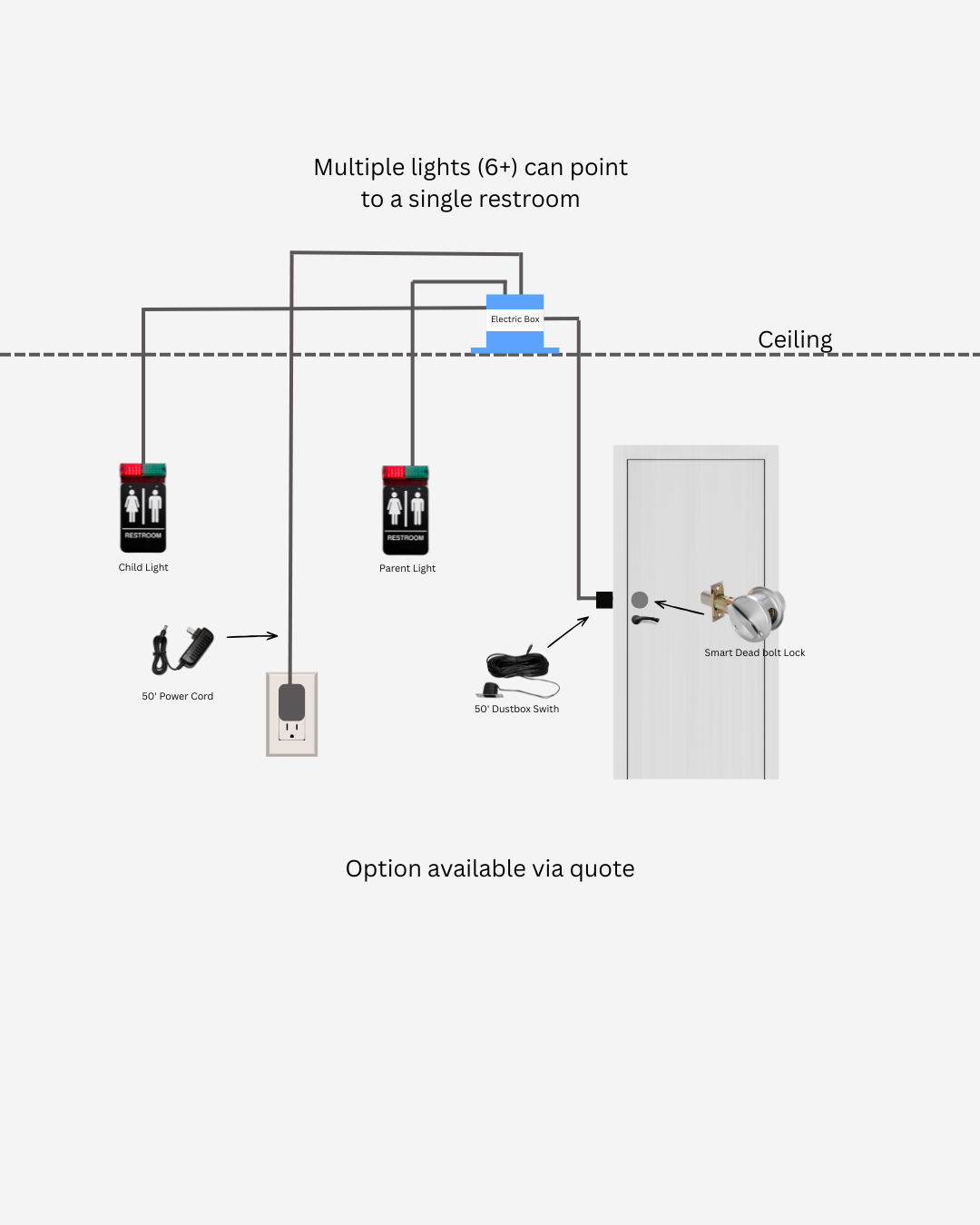

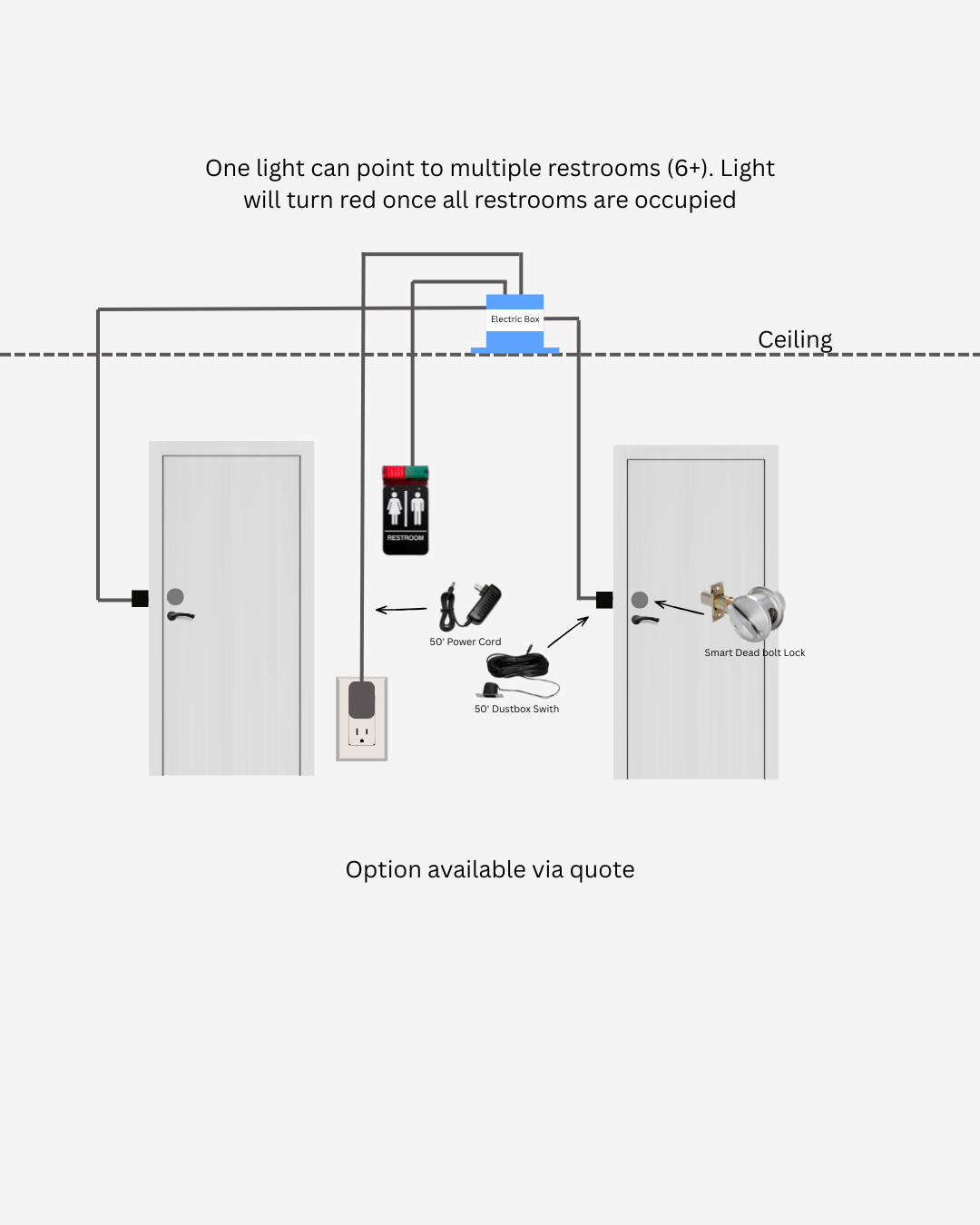

Field Wiring: Includes 50-foot premium 2-conductor low-voltage signaling wire (Extendable up to 50 feet without signal degradation)
Mounting Versatility: Rated for dual-surface deployment—direct wall mounting attachment
Hardware & Mechanical
Building Code & Fire Safety
Plenum Rated Options: Wiring complies with strict local ceiling air-handling safety codes.
Fire-Rated Doors: Deadbolt lock and strike plate are compatible with standard commercial door preps; check with your local AHJ (Authority Having Jurisdiction) when deploying on rated fire doors.
Prefer to order via a formal quote, need bulk pricing options, a custom configuration, or your ordering outside of the US? Click the button below to fill out our quote form.
Features
Installation Details
Ready to install out of the box. Every kit includes all the components needed for installation. Just bring your own standard hand and power tools.
Each model comes with a 50ft power cord, a 50ft dust-box switch cable, a smart deadbolt lock (Schlage B571), an electrical box, and the light mount. Restroom signage is included with our Signature and Elegant models.
