Product Overview
Electrical Power Requirements
Input Voltage: 100–240V AC, 50/60 Hz (via included step-down transformer)
Operating Voltage: Low-Voltage Class 2 system DC operational threshold)
Circuit Integration: Plugs directly into standard commercial outlets
System Fail-Safe: Automatic logic reset immediately following facility power interruptions or generator switchovers
Hardware (Division 8): Heavy-duty, commercial-grade lock assembly meeting ANSI/BHMA standards. ADA-compliant thumb-turn and exterior indicator design (Schlage B571). Fits standard 1-3/4” commercial doors with a standard 2-1/8” bore.
Trigger Mechanism: Closed-loop, non-electronic magnetic deadbolt with strike plate switch assembly (No motion sensors, software apps, or network vulnerabilities)

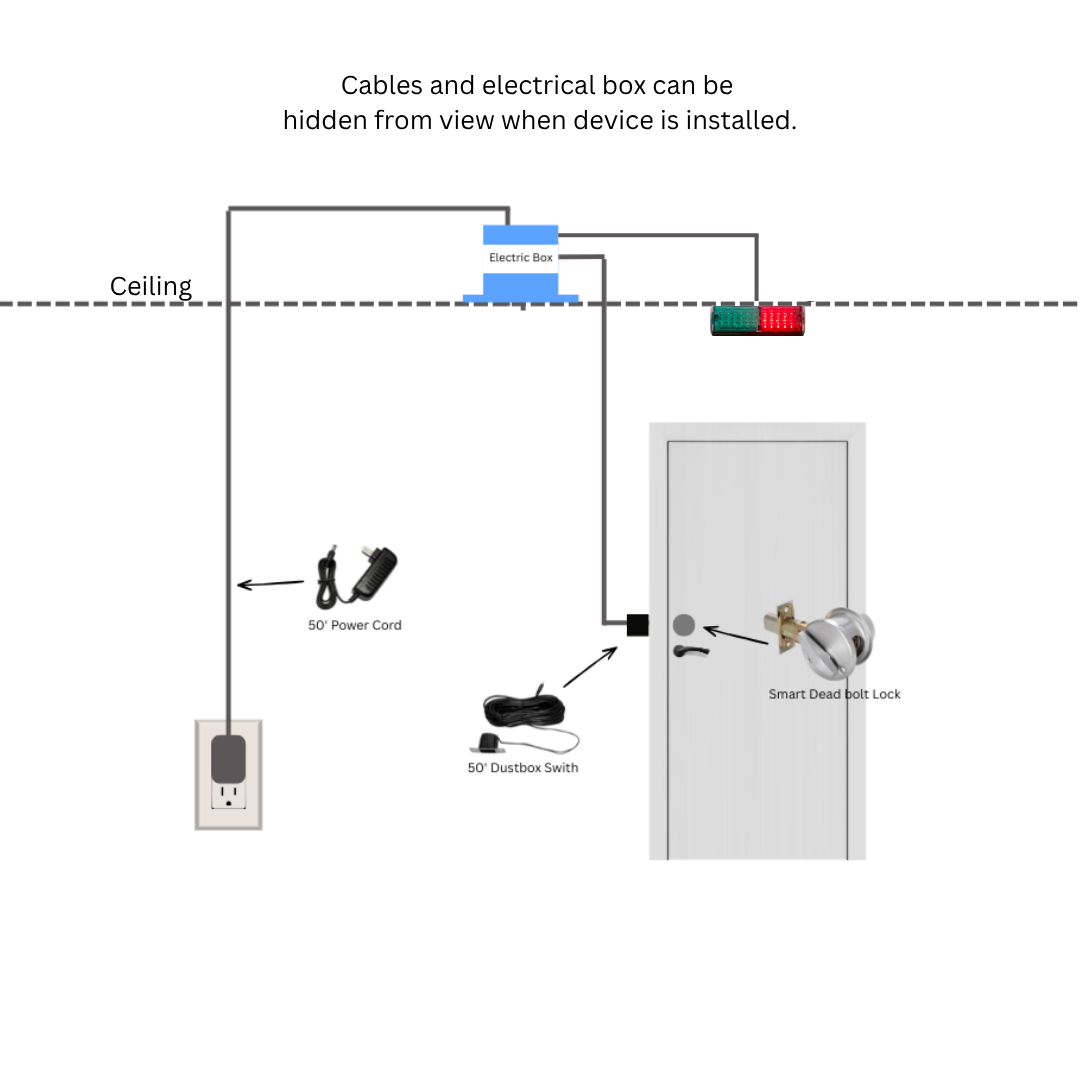

Field Wiring: Includes 50-foot premium 2-conductor low-voltage signaling wire (Extendable up to 50 feet without signal degradation)

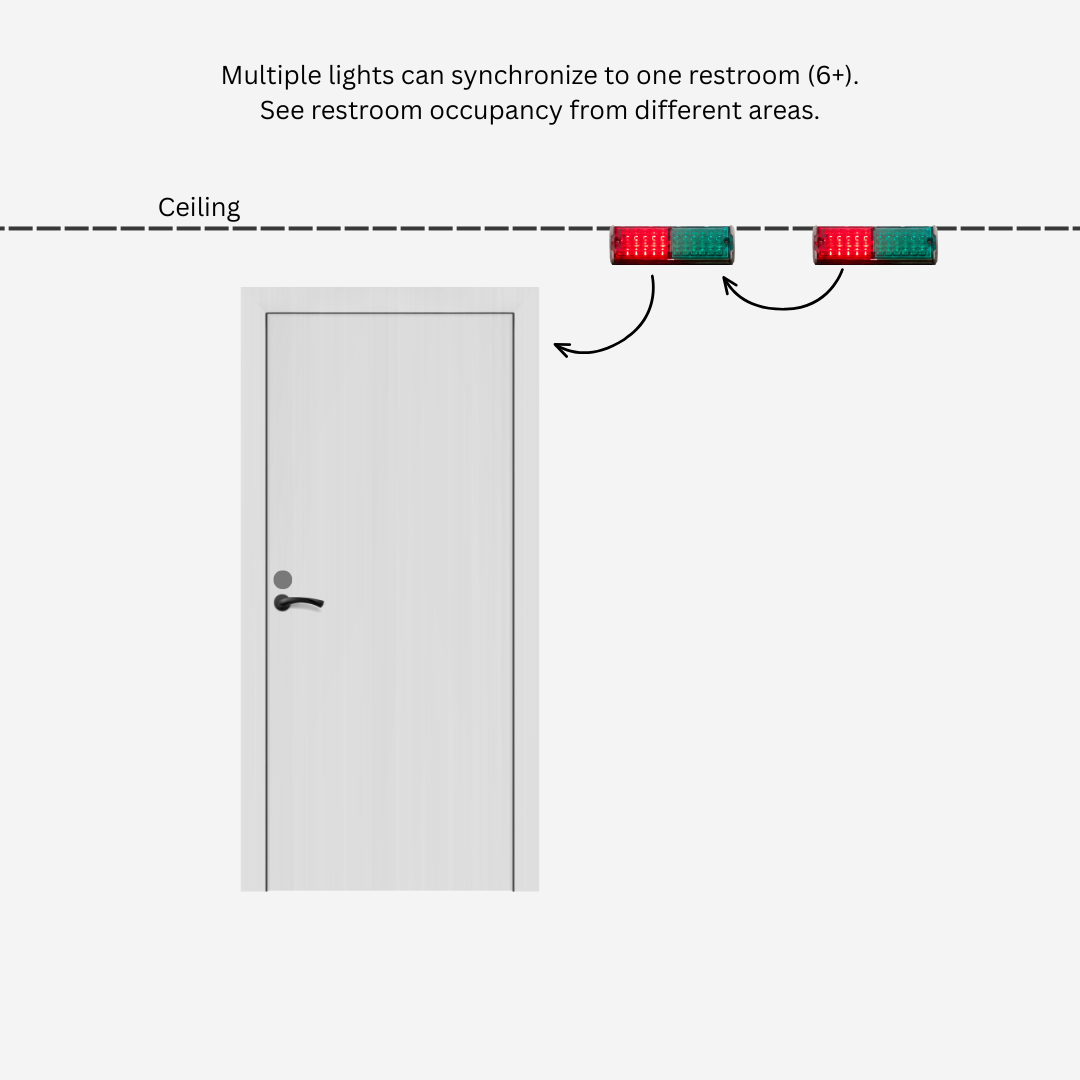

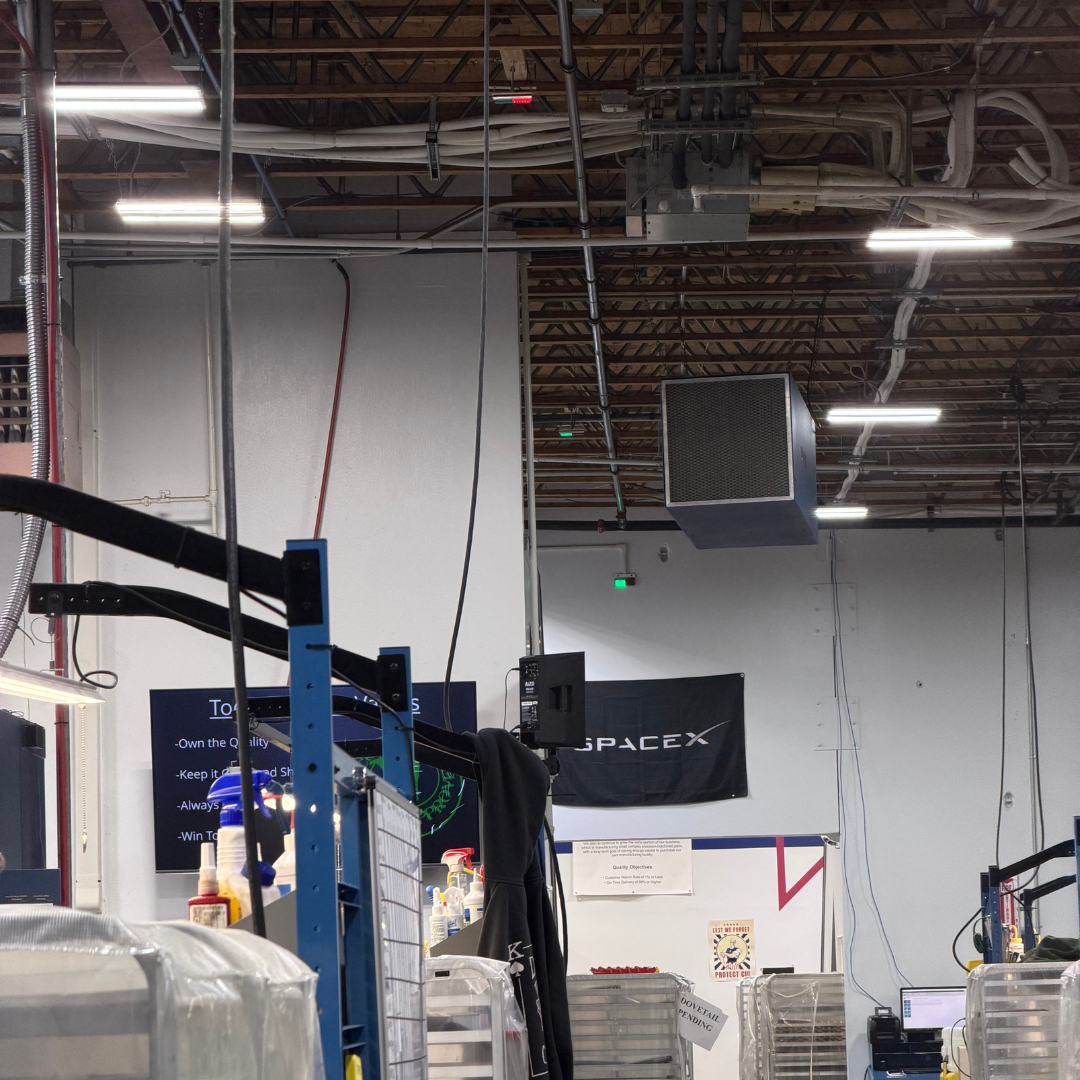

Mounting Versatility: Rated for dual-surface deployment—structural suspended ceiling grid attachment
Hardware & Mechanical
Building Code & Fire Safety
Plenum Rated Options: Wiring complies with strict local ceiling air-handling safety codes.
Fire-Rated Doors: Deadbolt lock and strike plate are compatible with standard commercial door preps; check with your local AHJ (Authority Having Jurisdiction) when deploying on rated fire doors.
